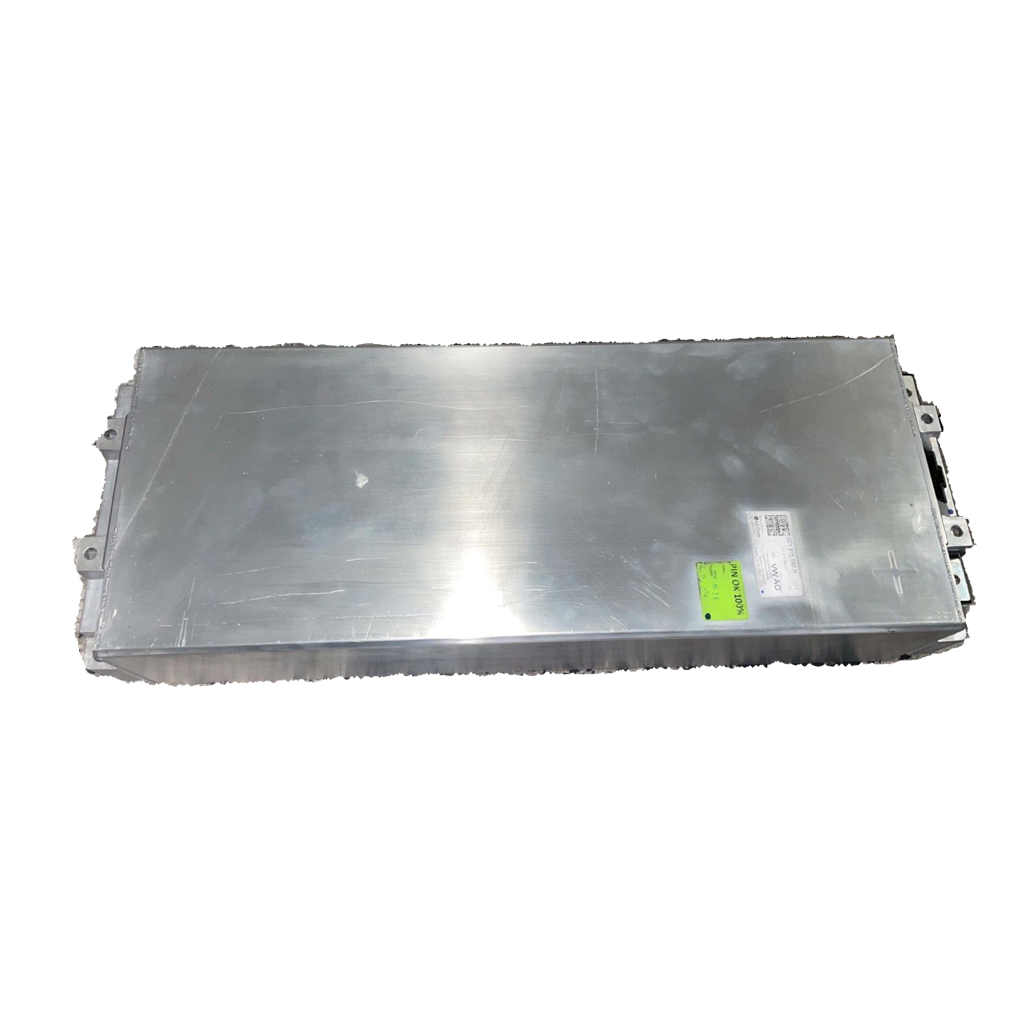

VW ID 6.85kWh 8S 29.6v EV Battery Module (LG Chem)

VW MEB 6.85kWh 12S 44.4v EV Battery Module (LG Chem)

These modules are rated for 6.85kWh, arranged in either a 8S or 12S format (This item is the 8S) giving a nominal voltage of 29.6v (i.e at 50% charge).

They manufactured by LG Chem and are a nice compact size with high capacity and lightweight. These modules are originally found in VW MEB Cars (ID3, ID4 etc)

They can be used with normal cell tap BMS’s (such as Orion) with a cell tap adapter board, or with a CANBUS based BMS (Such as SIMP BMS) using the original BMS slave boards (nor built into the modules). Please contact enquire@zoomev.uk with your application to discuss.

They’re currently out of stock, please contact allow 2-3 weeks for delivery (contact before ordering for a more accurate estimate)

Specs:

Nominal Capacity: 6850 Wh

State of Health:  > 90%

Nominal Voltage: 29.6v

Max voltage: 33.6v

Min voltage: 22.4v

Length: 590mm

Width: 220mm

Height: 110mm

Weight: 32KG

Delivery and Collection Available (Collection from Worcester)

Please contact prior to ordering for delivery estimate for larger orders
