VW E-Golf Battery Module 1.63kWh 14.8V (48v Use)
VW E-Golf Battery Module 1.63kWh 14.8V (48v Use)

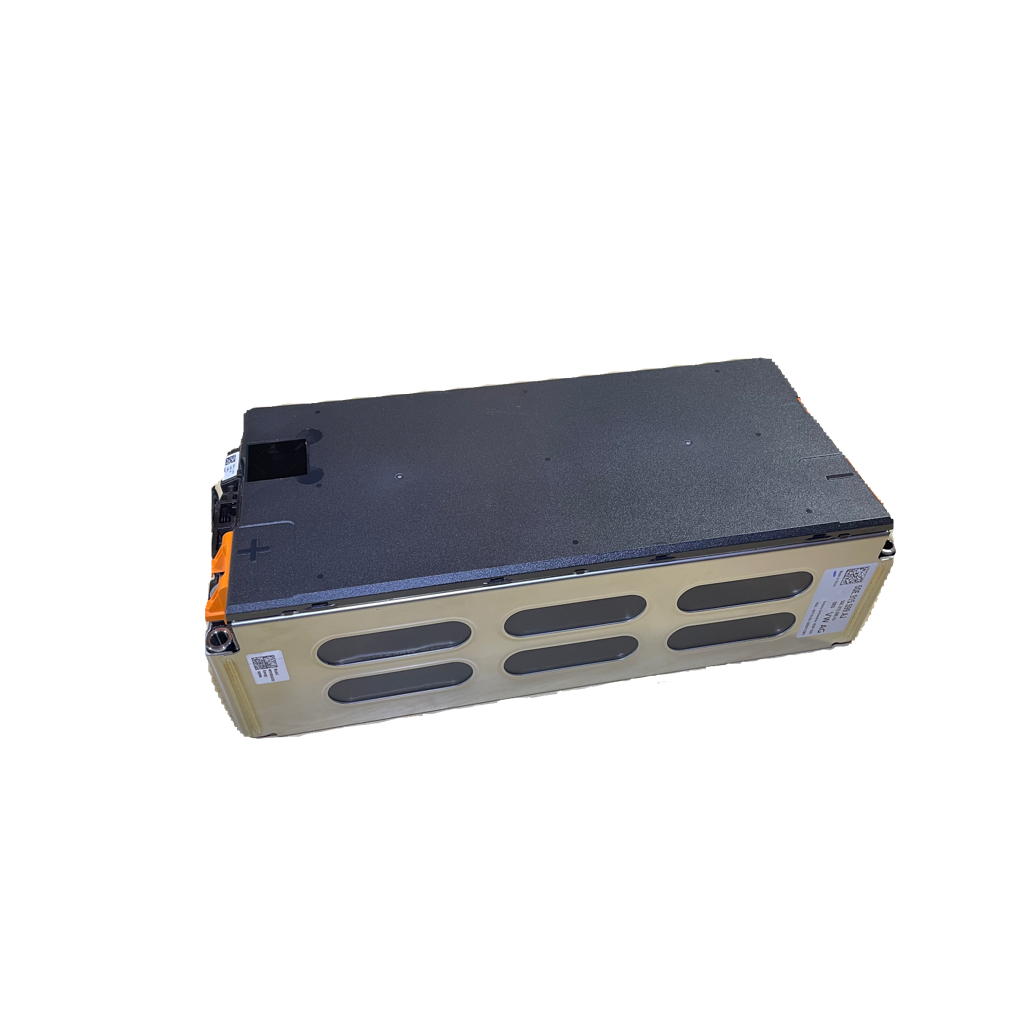

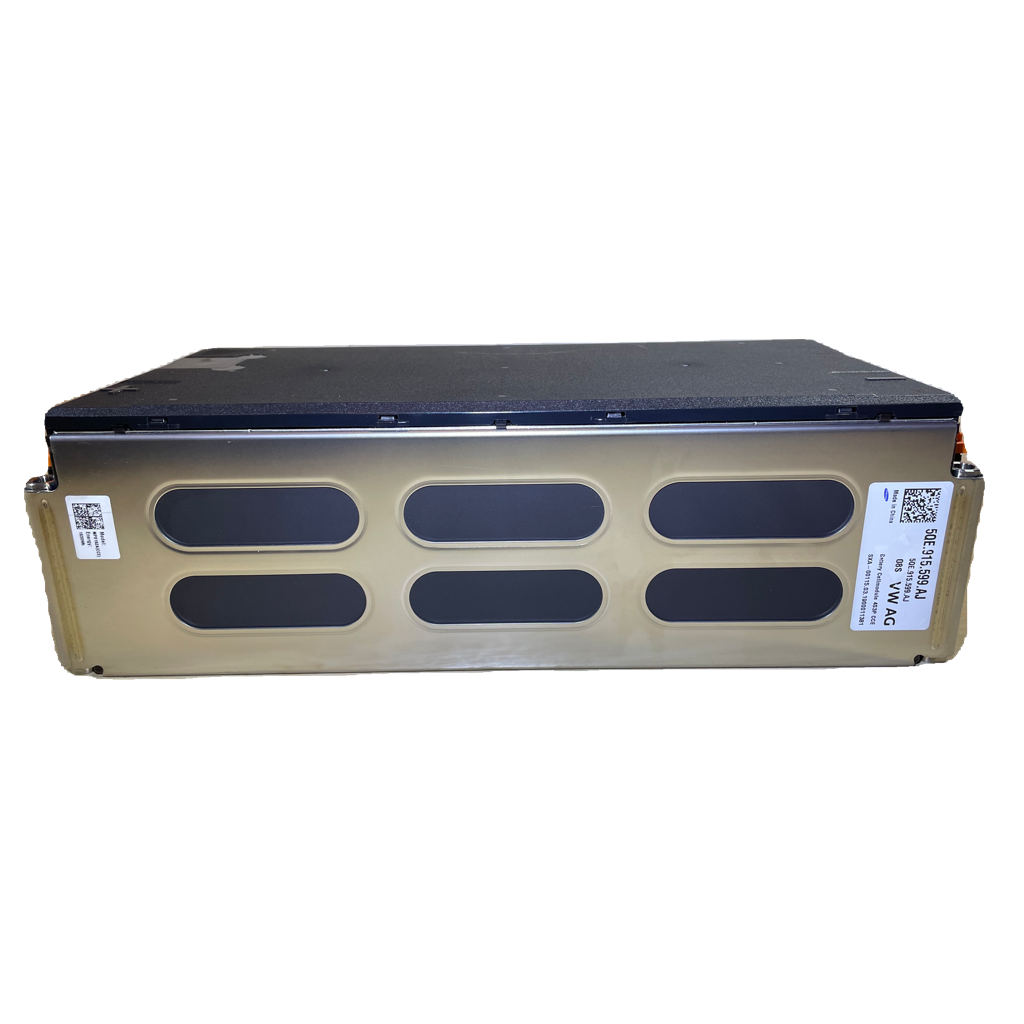

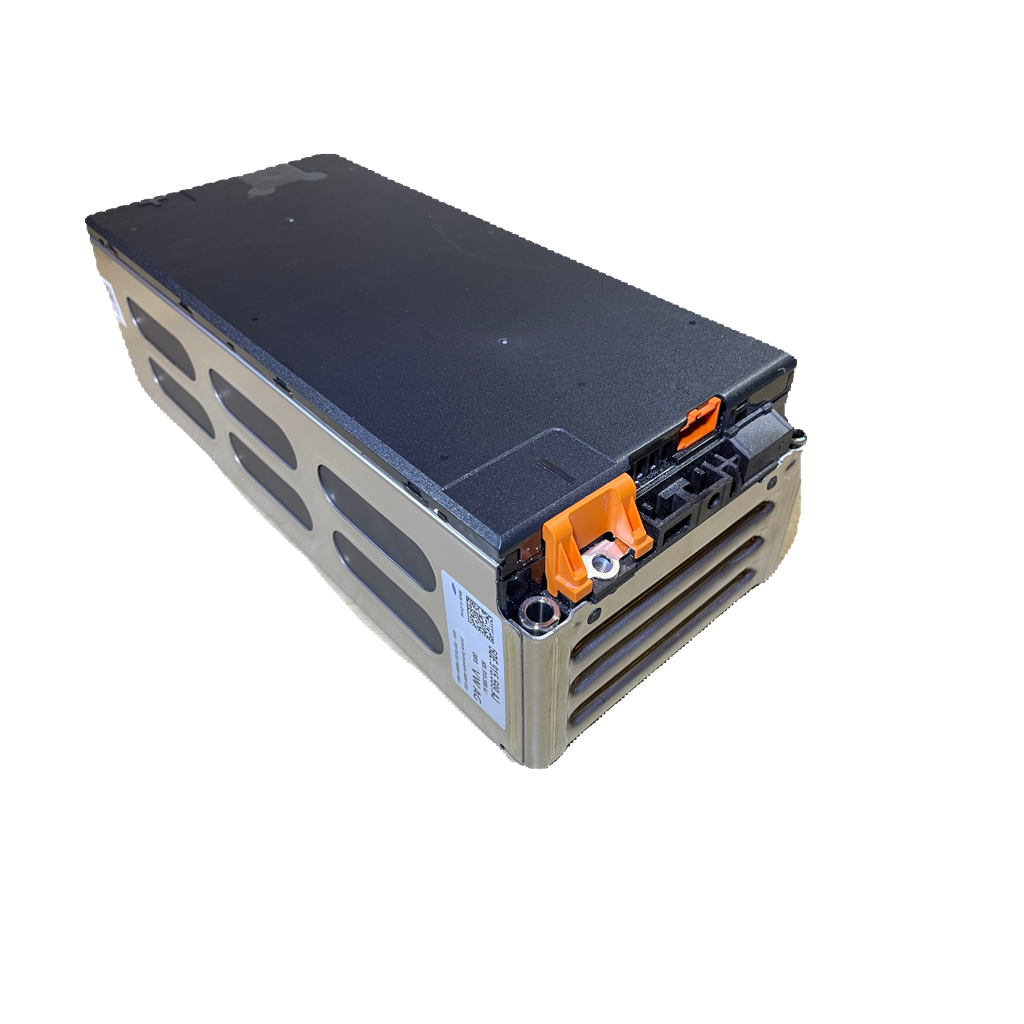

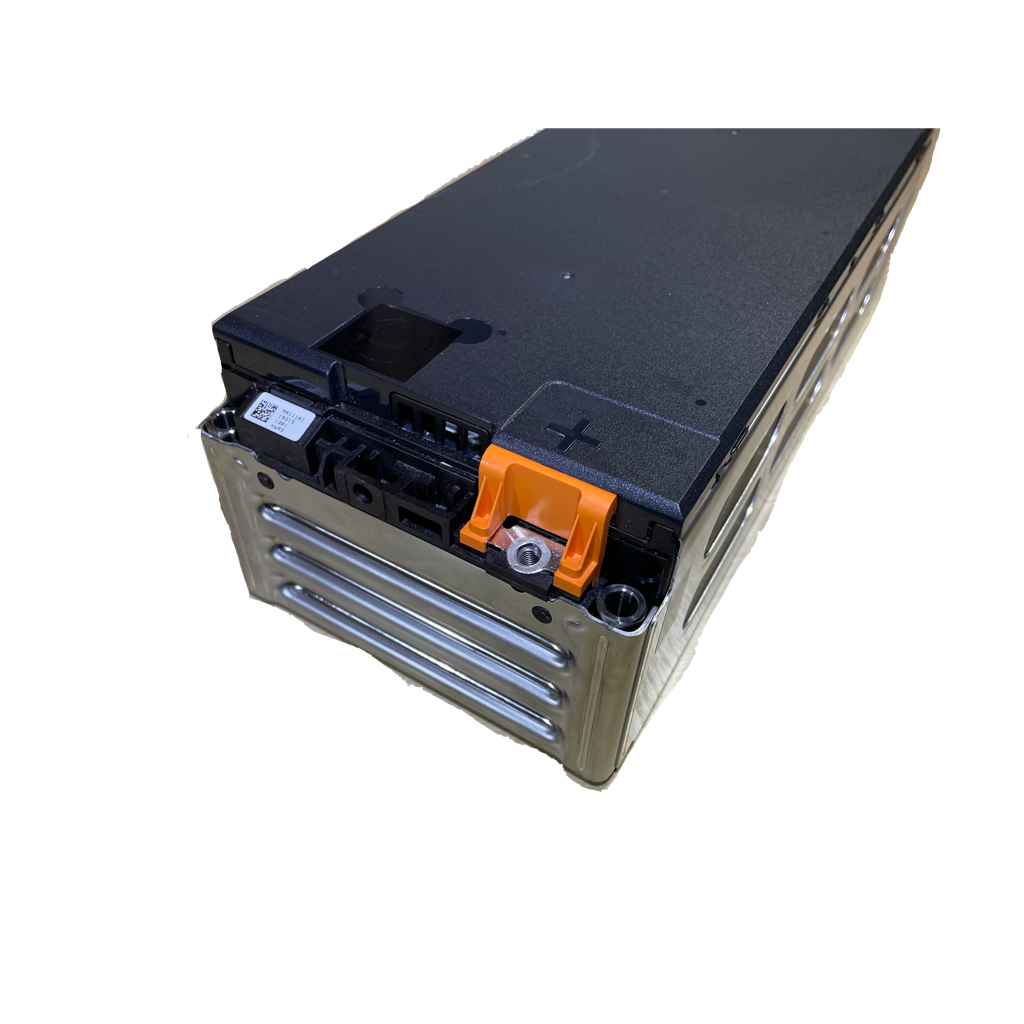

VW E-Golf 1.63kWh Battery Module
These modules are rated for 1.63kWh, arranged in a 4S format giving a nominal voltage of 14.8 (i.e at 50% charge). Making them suitable for a lot of 48V systems when 3 are used in series. Giving 44.4v Nominal and 4.89kWh
They are a nice compact size and yet still deliver high performance discharge current
There are 2 versions of this module, one with an on board BMS Slave board which can be controlled using SIMP BMS via CANBUS (or a Teensy 3.2 Controller) and one without the BMS Slave board and only cell taps. Both Modules have direct cell taps for ease of use with other BMS's too using the connector listed below. This is the version without the slave board.
We will be offering kits with modules and BMS already setup soon.
We have the Complete e-Golf pack in stock, please contact if interested.
Any questions contact enquire@zoomev.uk
Specs:
Nominal Capacity: 1630 Wh / 111Ah
State of Health: > 90%
Nominal Voltage: 14.8v
Max voltage: 16.8v
Min voltage: 11.2v
Length: 335mm
Width: 150mm
Height: 105mm
Weight: 11KG
Mounting Bolt size: M8
BMS Connector Part No. : TE 1-1670990-1
Delivery and Free Collection Available (Collection from Worcester)
