VW E-Golf Battery Module 0.815kWh 7.6V (48v Use)

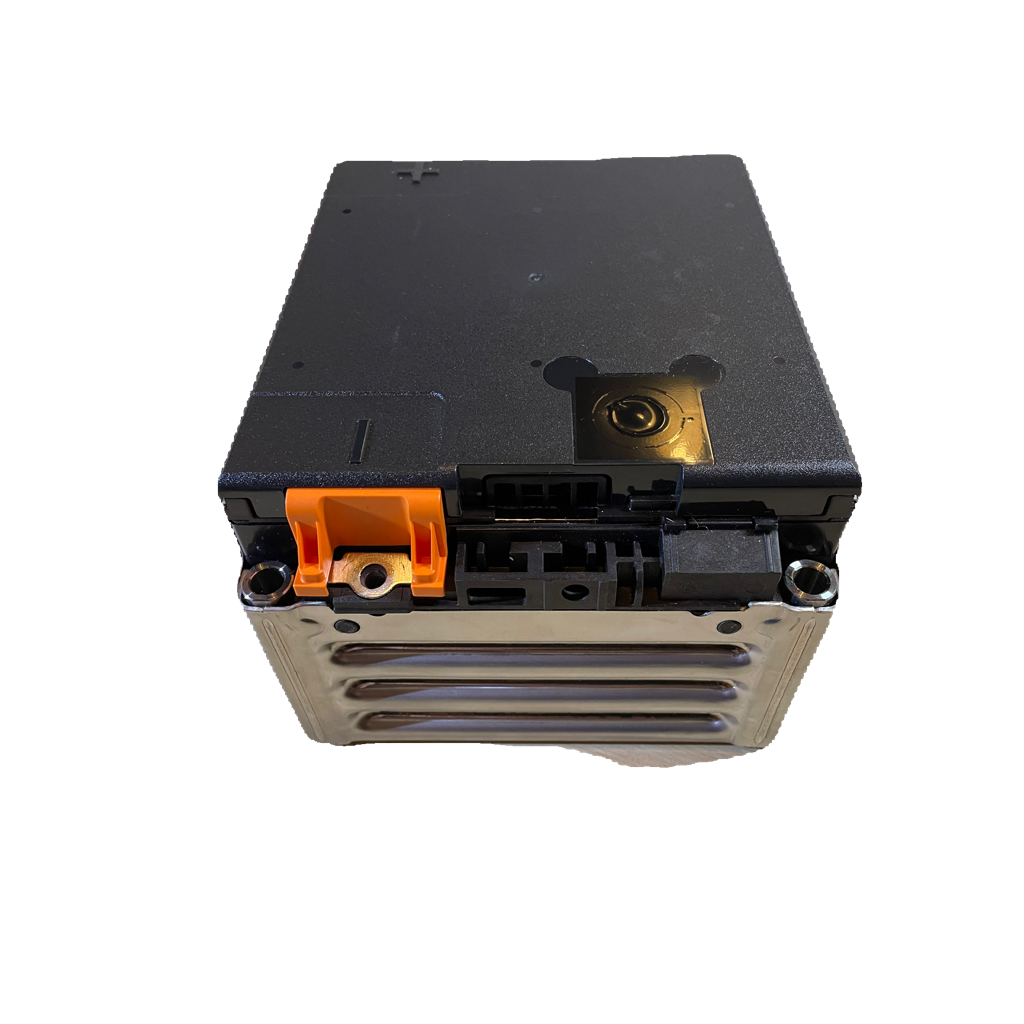

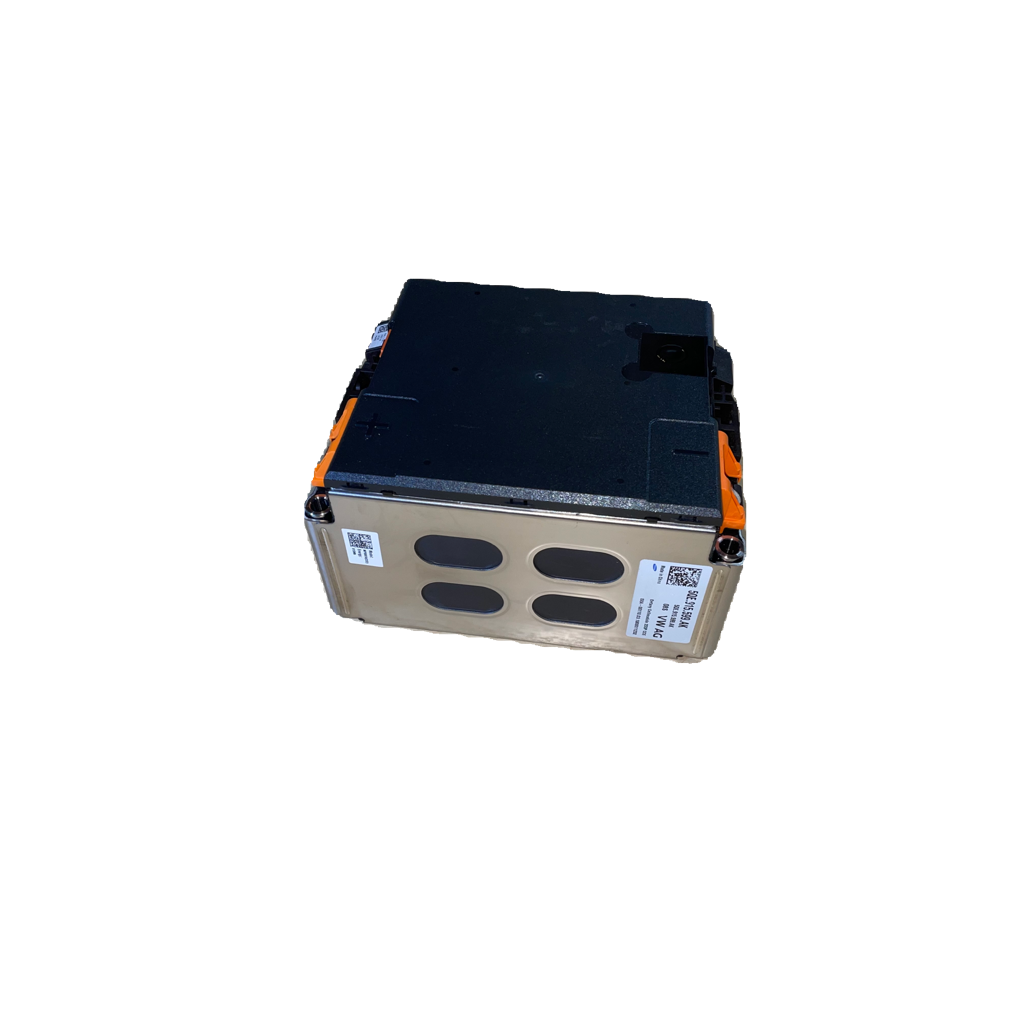

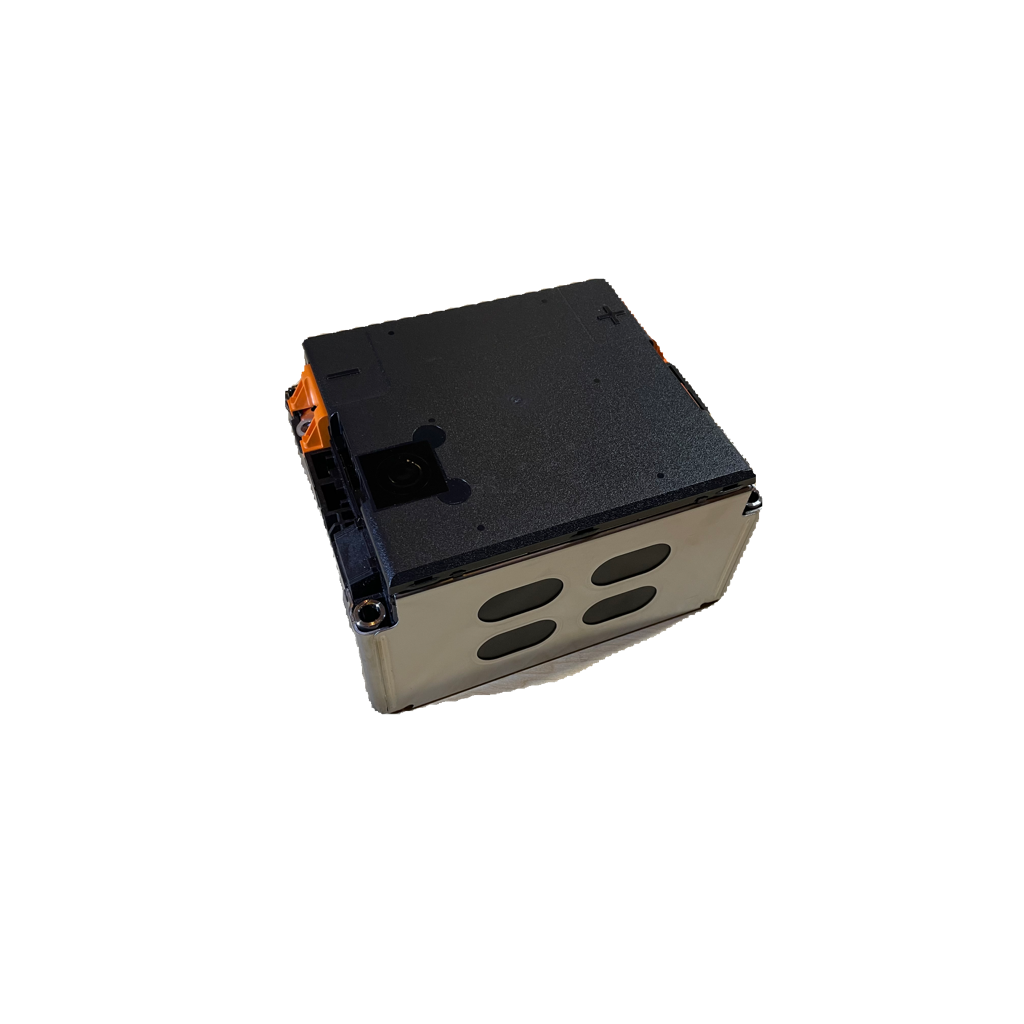

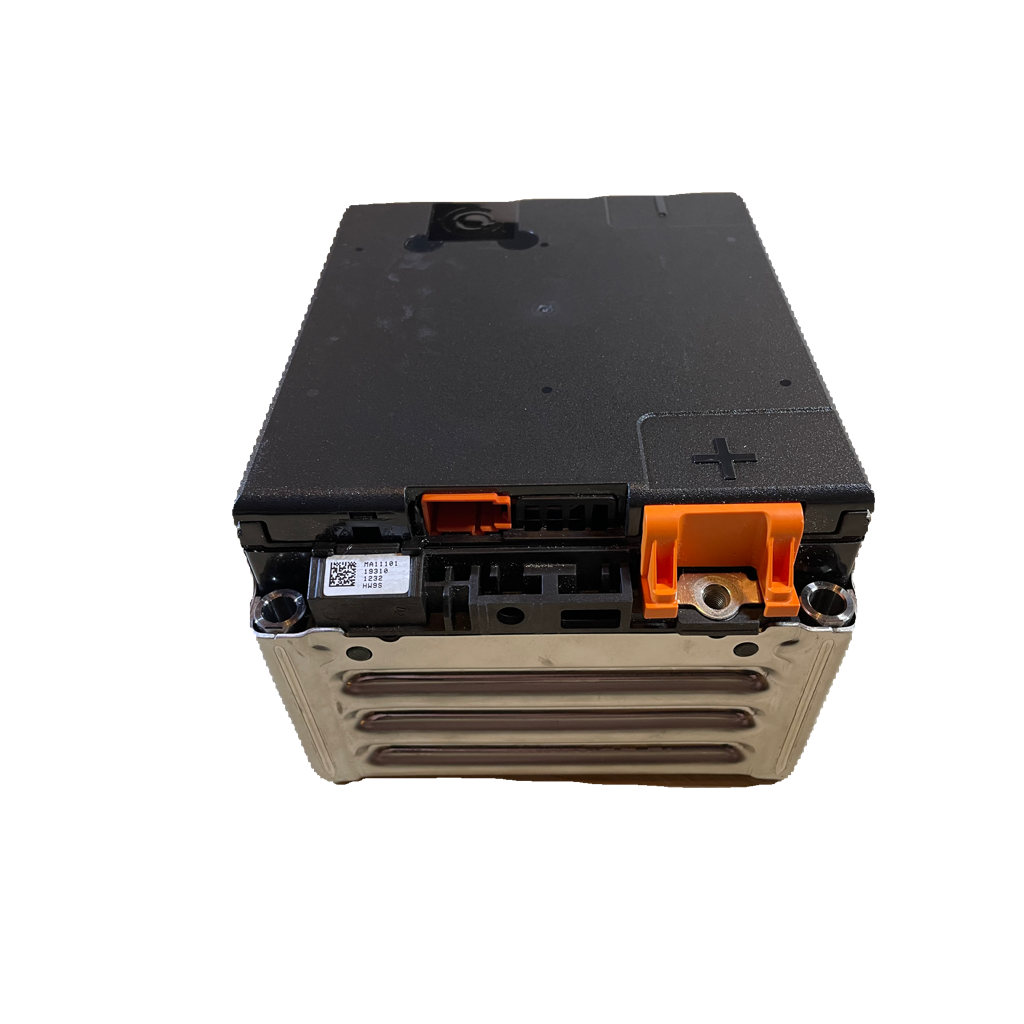

VW E-Golf 0.815kWh Battery Module

These modules are rated for 0.815kWh, arranged in a 2S format giving a nominal voltage of 7.4v (i.e at 50% charge).

They are suitable for many 48v systems when used with the larger 4s modules to form a 14S battery pack.

These modules have direct cell tap using the connector listed below.

We have the Complete e-Golf 35.8kWh pack in stock, please contact if interested.

Any questions contact enquire@zoomev.uk

Specs:

Nominal Capacity: 815 Wh / 111Ah

State of Health:  > 90%

Nominal Voltage: 7.4v

Max voltage: 8.4v

Min voltage: 5.6v

Length: 180mm

Width: 150mm

Height: 105mm

Weight: 6KG

Mounting Bolt size: M8

BMS Connector Part No. : TE 1-1670990-1

Delivery and Free Collection Available (Collection from Worcester)
