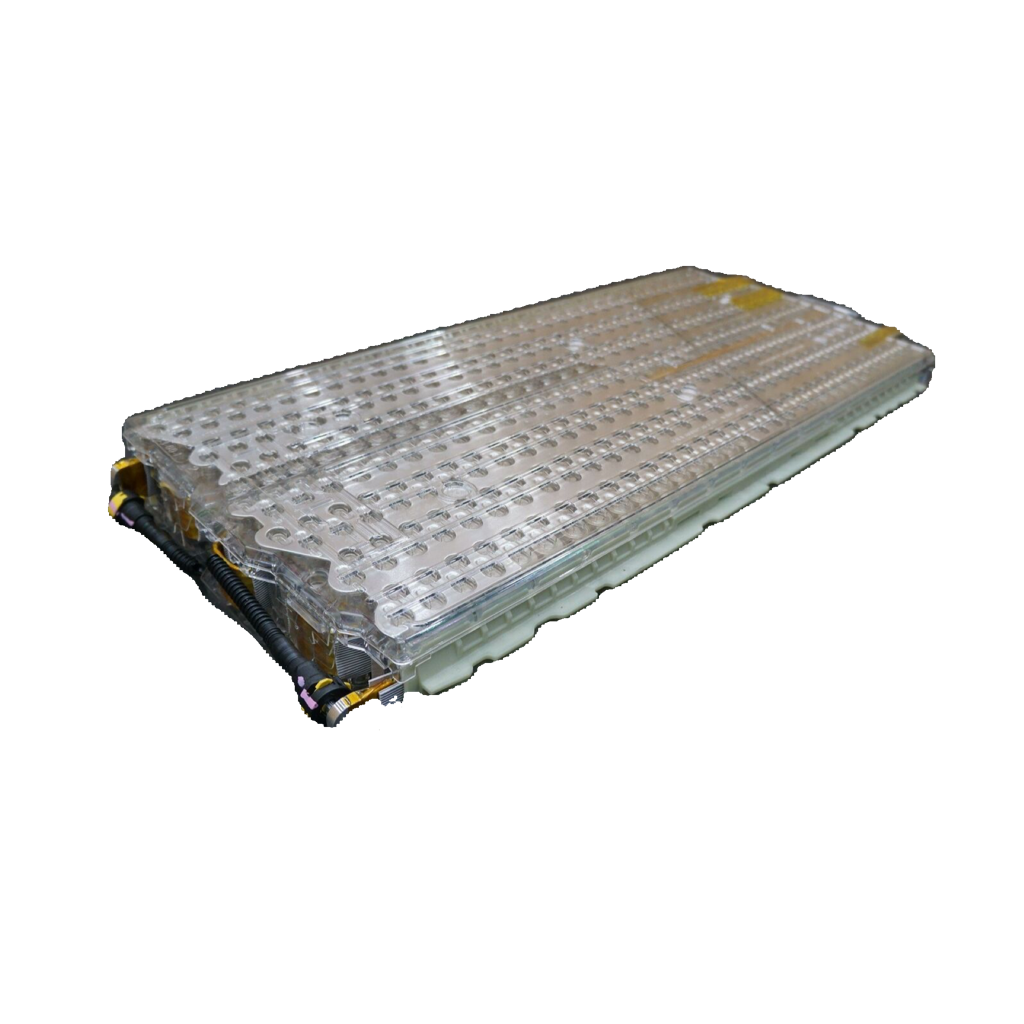

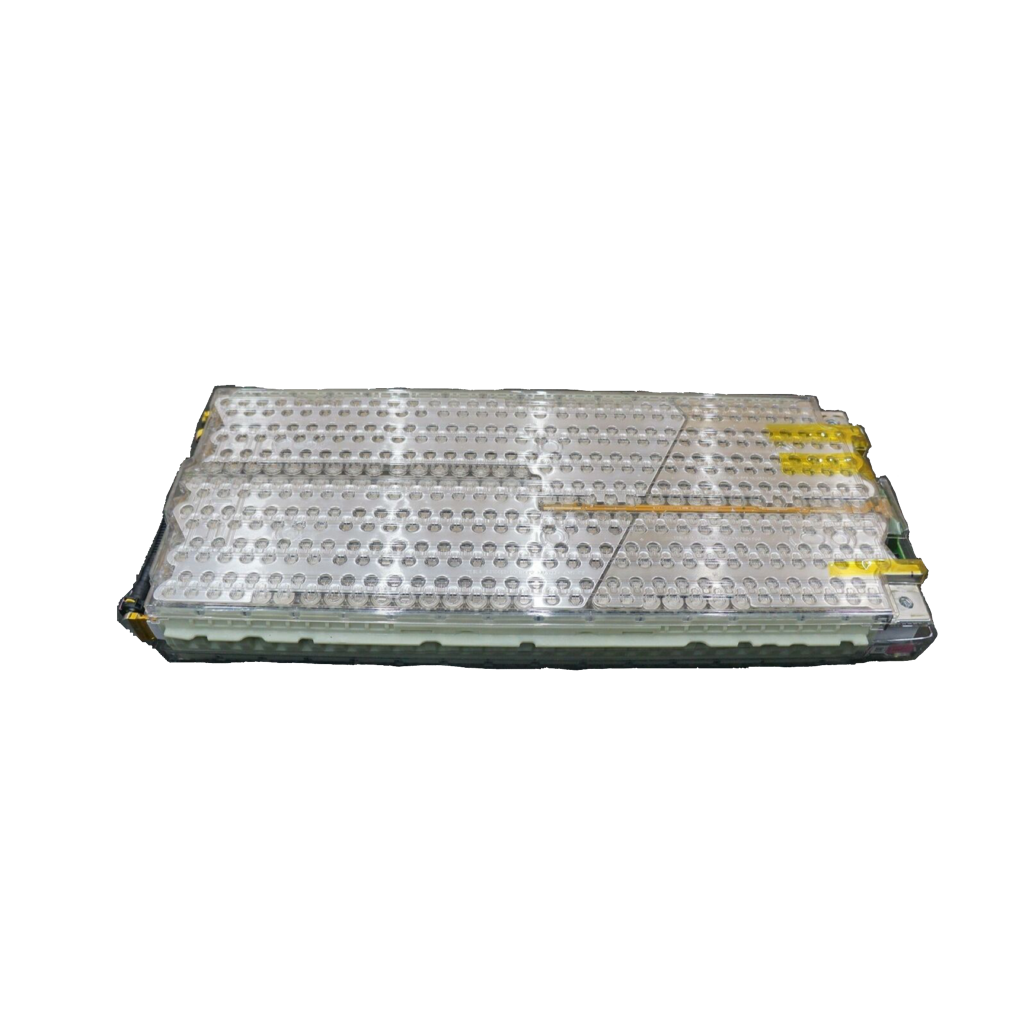

Tesla Model S / X 5.3kWh EV Battery Module

Tesla Model S / X 5.3kWh Battery Module

These modules are rated for 5.3kWh, arranged in a 6S format giving a nominal voltage of 22.2v (i.e at 50% charge).

They are very high quality modules, popular with a wide range of uses from energy storage to EV conversions etc. These modules are from Tesla Model S and X cars which had 75 or 85kWh battery packs

Available also are the original BMS Slave boards (to be used with CANBUS Based BMS’s such as SIMP BMS) or replacement BMS boards to use the modules with normal Cell tap BMS’s such as Orion)

Any questions contact enquire@zoomev.uk

Specs:

Nominal Capacity: 5300 Wh

State of Health:  > 90%

Nominal Voltage: 22.2v

Max voltage: 25.2v

Min voltage: 16.8v

Length: 680mm

Width: 270mm

Height: 90mm

Weight: 25KG

Delivery and Collection Available (Collection from Worcester)

Please contact prior to ordering for delivery estimate for larger orders
