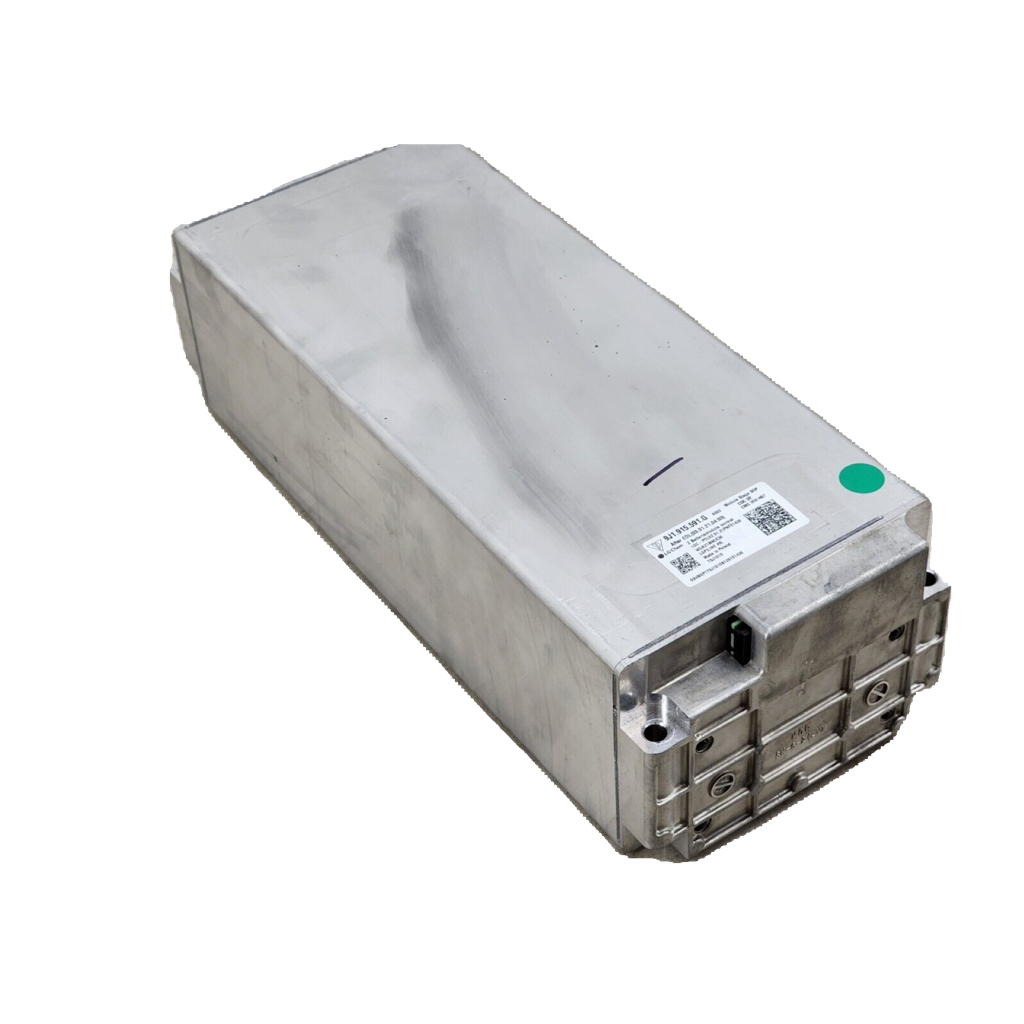

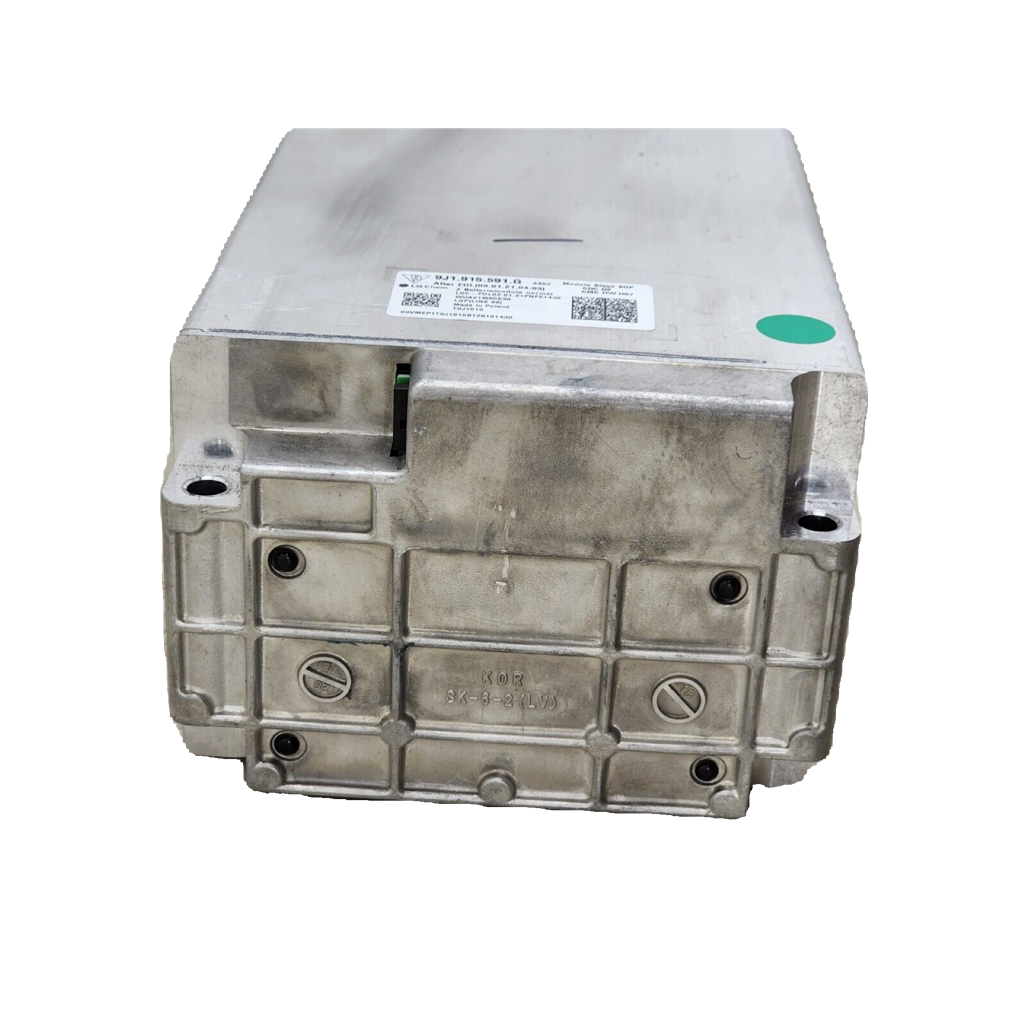

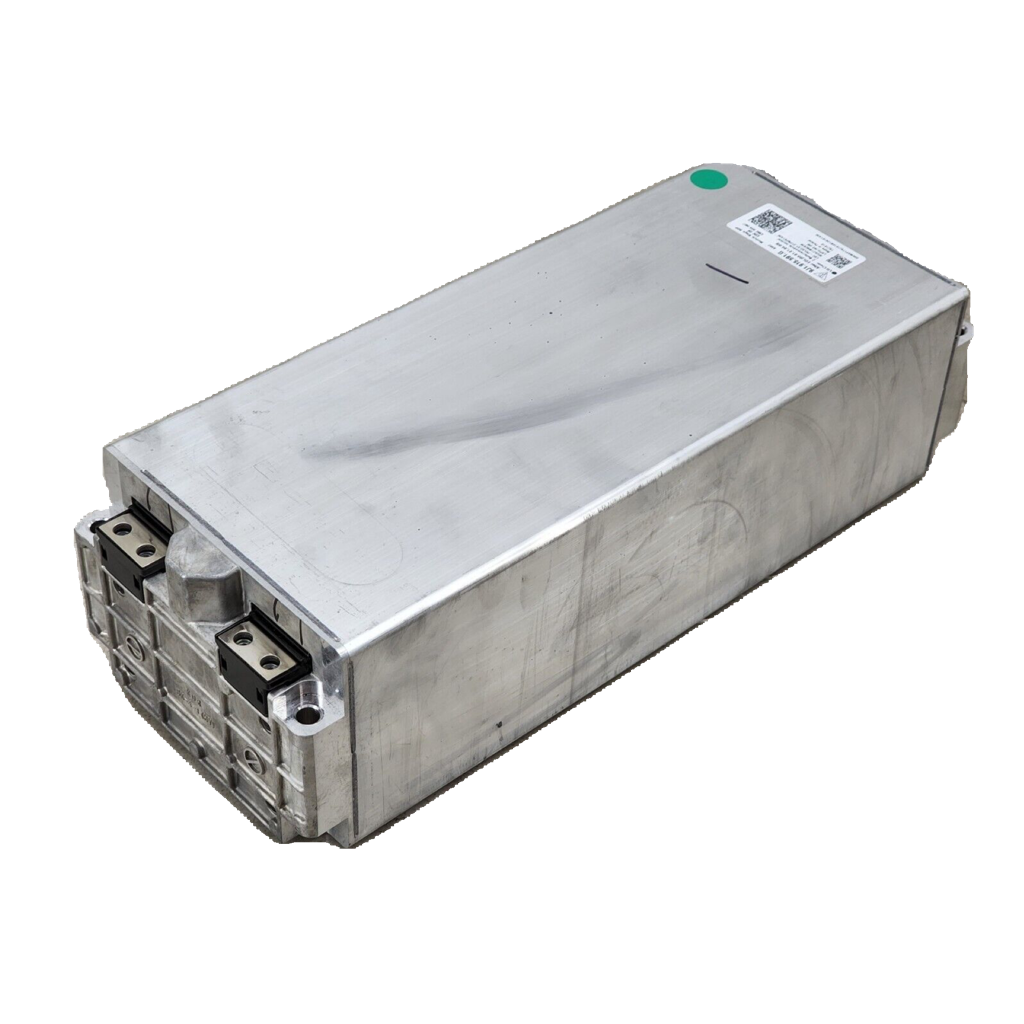

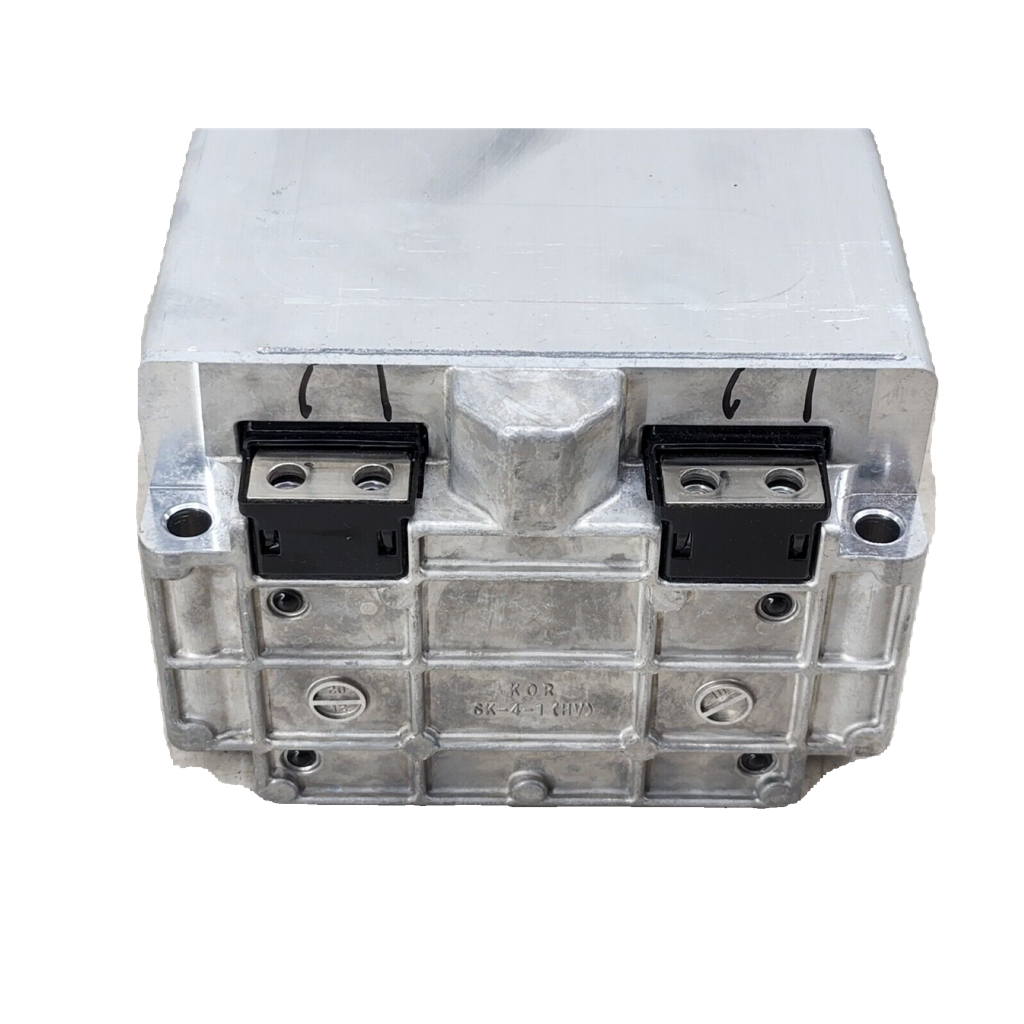

Porsche Taycan 2.86 kWh EV Battery Module

Porsche Taycan 2.86kWh EV Battery Module

These modules are rated for 2.86kWh, arranged in a 6S format giving a nominal voltage of 22.2v (i.e at 50% charge).

They manufactured by LG Chem and are a nice compact size with high capacity and lightweight, for a standard 96s EV battery it gives 46kWh weighing only 192kg. Making them the lightest OEM Battery Module available. Also great for other EV and battery storage applications.

Built in they have a BMS Slave Board which is non removable without cutting into the module housing (we do not recommend this). It is safer to re-use the original BMS slave board using a controller sold here: https://wdrautomatisering.nl/

They’re currently out of stock, please contact allow 2-3 weeks for delivery (contact before ordering for a more accurate estimate)

Any questions contact enquire@zoomev.uk

Specs:

Nominal Capacity: 2860 Wh

State of Health:  > 90%

Nominal Voltage: 22.2v

Max voltage: 25.2v

Min voltage: 16.8v

Length: 390mm

Width: 150mm

Height: 110mm

Weight: 12KG

Delivery and Collection Available (Collection from Worcester)

 Please contact prior to ordering for a quote and delivery estimate for larger orders
