Mitsubishi Outlander PHEV 1.32kWh EV Battery Module 29.6v (30v)

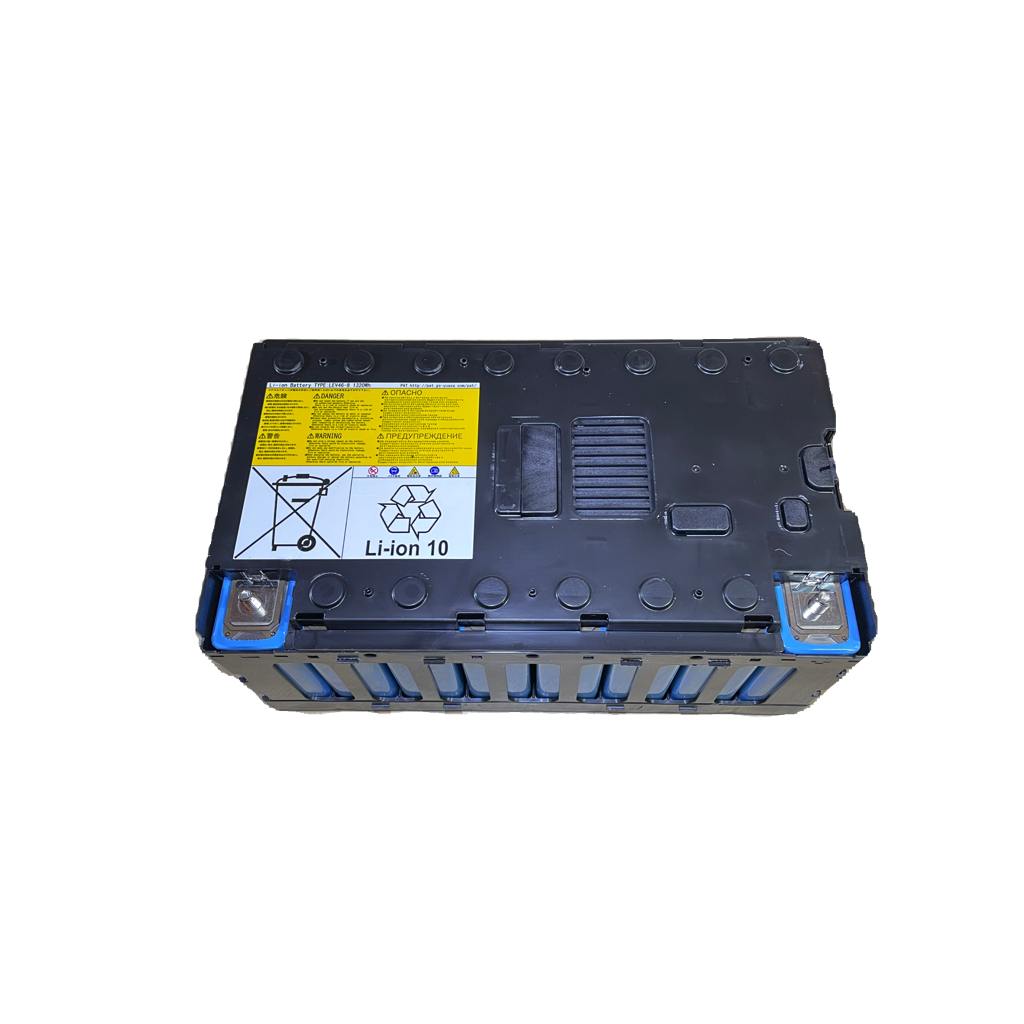

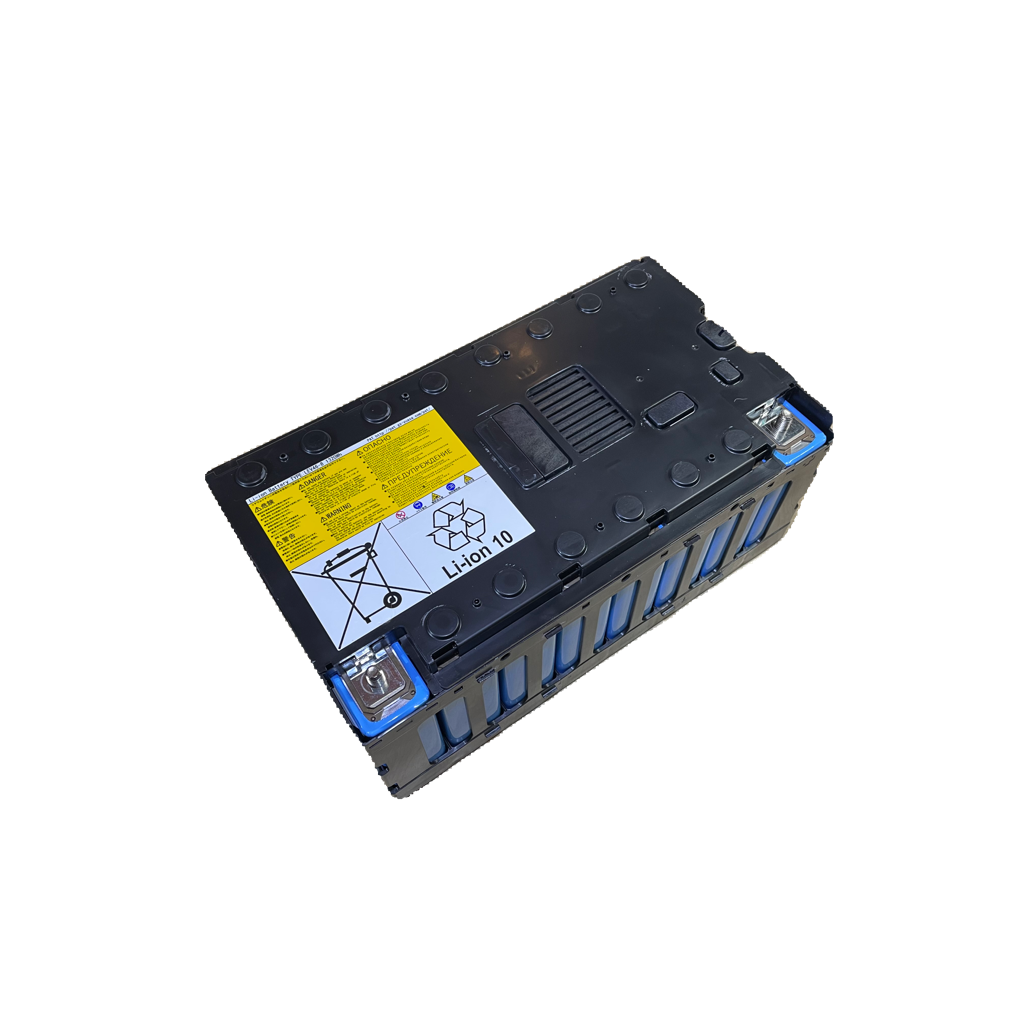

Mitsubishi Outlander PHEV 1.32kWh Battery Module

These modules are rated for 1.32kWh, arranged in a 8S format giving a nominal voltage of 29.6v (i.e at 50% charge).

These are the larger 1.32kWh modules found in 2018 and newer Outlander PHEV Cars. Each full pack contains 10 Modules, each module contains 8 cells. The cells are manufactured by Yuasa (Cells are called Yuasa LEV46)

Built in they have a BMS Slave Board which is compatible with SIMP BMS for cell monitoring and balancing.7

Specs:

Nominal Capacity: 1320 Wh

State of Health:  > 90%

Nominal Voltage: 29.6v

Max voltage: 33.6v

Min voltage: 22.4v

Length: 300mm

Width: 180mm

Height: 125mm

Weight: 13.5KG

Delivery and Collection Available (Collection from Worcester)

 Please contact prior to ordering for delivery estimate for larger orders
